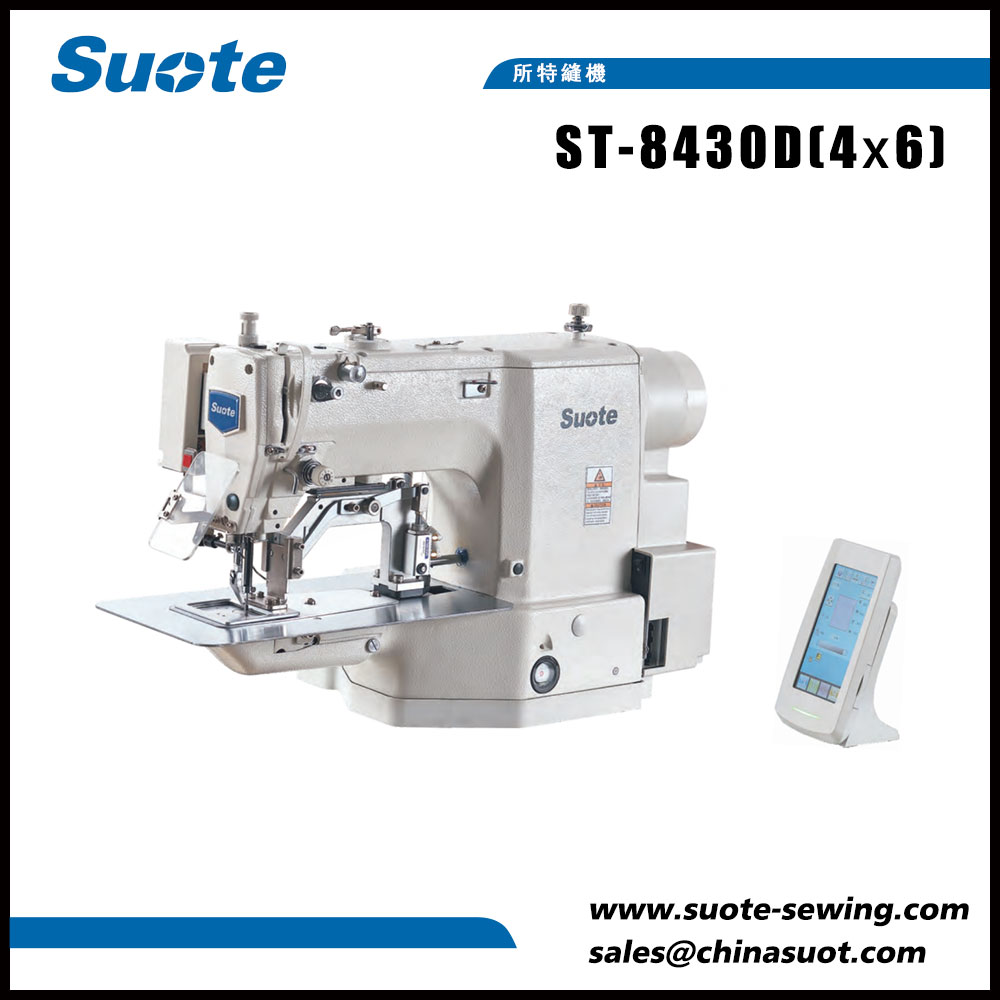

Small size electronic pattern sewing machine is developed on the basis of electronic direct drive bar tacker sewing machine.The max speed is 3200 r/min,improving the sewing efficiency.The max work clamp height and button clamp height is 17mm.The machine is servo motor drive.
Model |
ST-8430D(4*6) |
Name |
Small Size Electronic Pattern Sewing Machine |
Max sewing area |
X:60MM Y:40MM |
Stitch length |
Single needle lockstitch |
Max number of stitches |
210000 stitches(incleding 200000 stitches which canbe added) |
Work clamp height/button clamp height |
17mm |
Rotary hook |
Shuttle hook |
Data storage method |
Flash memory(any sewing pattern can be added using CF card) |
Number of user program |
50 |
Number of cycle program |
50 |
Number of stored data |
89 sewing patterns are set already |
Motor |
AC servo motor |
