Electronic Direct Drive Bar tacking Machine ST-8430D Introduction ·Over whelmingly superior productivity with the fast cycle time. ·High quality sewing faithfully following the sewing data. ·Realization of wide ranging sewing capabilities and low tension sewing ·Follow-up processing unnecessary after thread trimming. ·Prevents thread cast-off, bird's nests, and Stains on the thread at the beginning of the sewing operation. ·Clean sewing, powerful needle penetration force,adoption of compact flash cards. ·Low noise and low vibration, because of its low power consumption, it is economical. ·Sewing area 40*30mm

Model:ST-8430D

Send Inquiry PDF DownLoad

Product Description

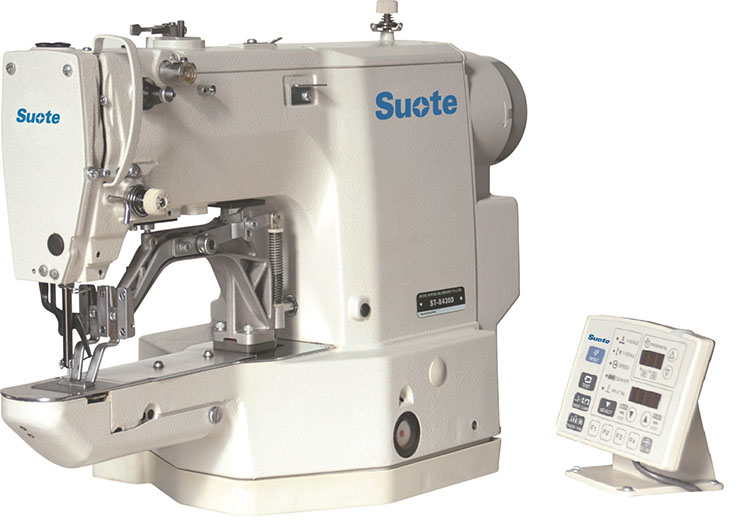

Electronic Direct Drive Bar tacking Machine ST-8430D

Electronic Direct Drive Bartacking Machine

Introduction of this Electronic Direct Drive Bar tacking Machine

·Over whelmingly superior productivity with the fast cycle time.

·High quality sewing faithfully following the sewing data.

·Realization of wide ranging sewing capabilities and low tension sewing

·Follow-up processing unnecessary after thread trimming.

·Prevents thread cast-off, bird's nests, and Stains on the thread at the beginning of the sewing operation.

·Clean sewing, powerful needle penetration force,adoption of compact flash cards.

·Low noise and low vibration, because of its low power consumption, it is economical.

·Sewing area 40*30mm

Feartures of this Electronic Direct Drive Bar tacking Machine

Direct drive

Typical Application of this Electronic Direct Drive Bartacking Machine

Multi-use

Specifications of this Electronic Direct Drive Bartacking Machine

ST-8430D

	ST-8430D							ST-8438D
Application	01	02	05	06	07
	Medium material	Heavy material	Belt loop	Elastic stitch	Knitted materials			Button Sewing
Stitch formation	Single needle lockstitch
Max.Sewing speed	3200 rpm							2700 rpm
Sewing area (X-Y)	Max. 40*30mm			Max. 40*40mm		Max. 40*30mm		Max. 6.4*6.4mm
Dimensions of buttons that can be sewn	–––							Outer diameter of button 8-30mm*1
Feed mechanism	Y-θ intermittent feed mechanism (pulse-motor driven mechanism)
Stitch length	0.05-12.7mm
Max.No.of stitches	210,000 stitches(including 200,000 stitches which can be added)
Work clamp lifter	Pulse motor drive system
Work clamp height	17 mm Max.							13 mm Max.
Rotary hook	Shuttle hook
Thread wiper drive	Standard equipment
Thread trimmer drive	Standard equipment
Data storage method	Flash memory (any sewing pattern can be added using CF card)*2
Number of user program	50
Number of cycle program	9
Mumber of stored data	89 sewing patterns are set already						53 sewing patterns are set already
	(Up to 200 patterns can be added. Total number of stitches of stored data which can be added is within 200,000)
Motor	AC servo motor 550w

*1 use the optional button clamp B (S03634-101) for diameters of 20mm or greater

*2 the recommended CF cards are commercially-available ones from San Disk.

Delivery and Service of this Electronic Direct Drive Bartacking Machine:

· The machines have enough stock and can delivery within 7days.

· One year guarntee in mechanism parts except the quick-wear parts, three years guarntee in electronic parts.
