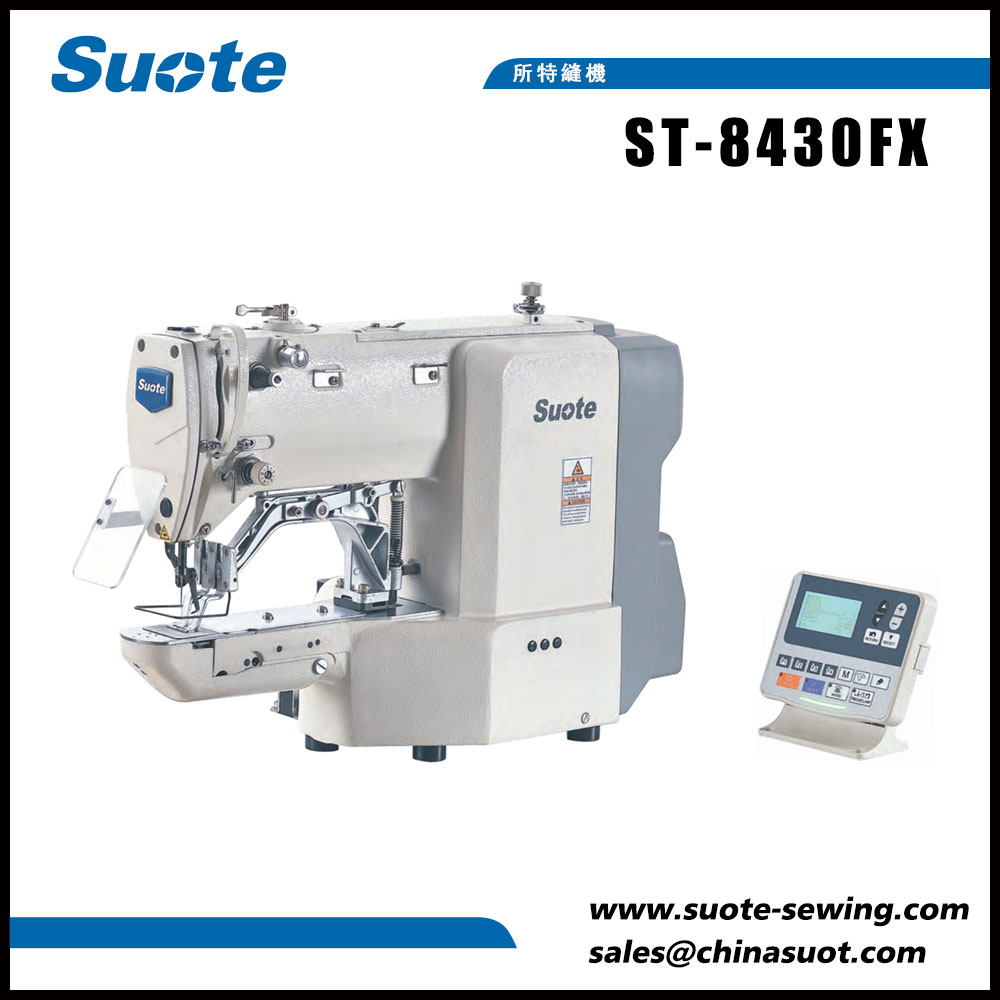

Electronic Direct Drive Bar Tacker Sewing Machine

Model

ST-8430FX

Name

Electronic Direct Drive Bar

Tacker Sewing Machine

Max sewing speed

3200 sti/min

Application

03

05

Medium material

Heavy material

Stitch formation

Single needle lockstitch

Sewing area(X-Y)

Max 40*30mm

Feed mechanism

Y-θ intermittent feed mechanism(pulse-motor driven mechanism)

Stitch length

0.05-12.7mm

Max no. Of stitches

5000 stitches per pattern

Work clamp lifter

Pulse motor drive system

Work clamp height/Button clamp height

17mm max

Rotary hook

Shuttle hook

Thread wiper drive

Standard equipment

Data storage method

Standard equipment

Data storage method

USB

Number of cycle program

50

Number of stored data

89 sewing patterns are set already

Up to 512 patterns can be added,total number of stitches of stored data which can be added os within 500000

Motor

AC servo motor 500w

Power source

Single phase 100V/220V,three phase200V/220V/380V/400V/400VA
