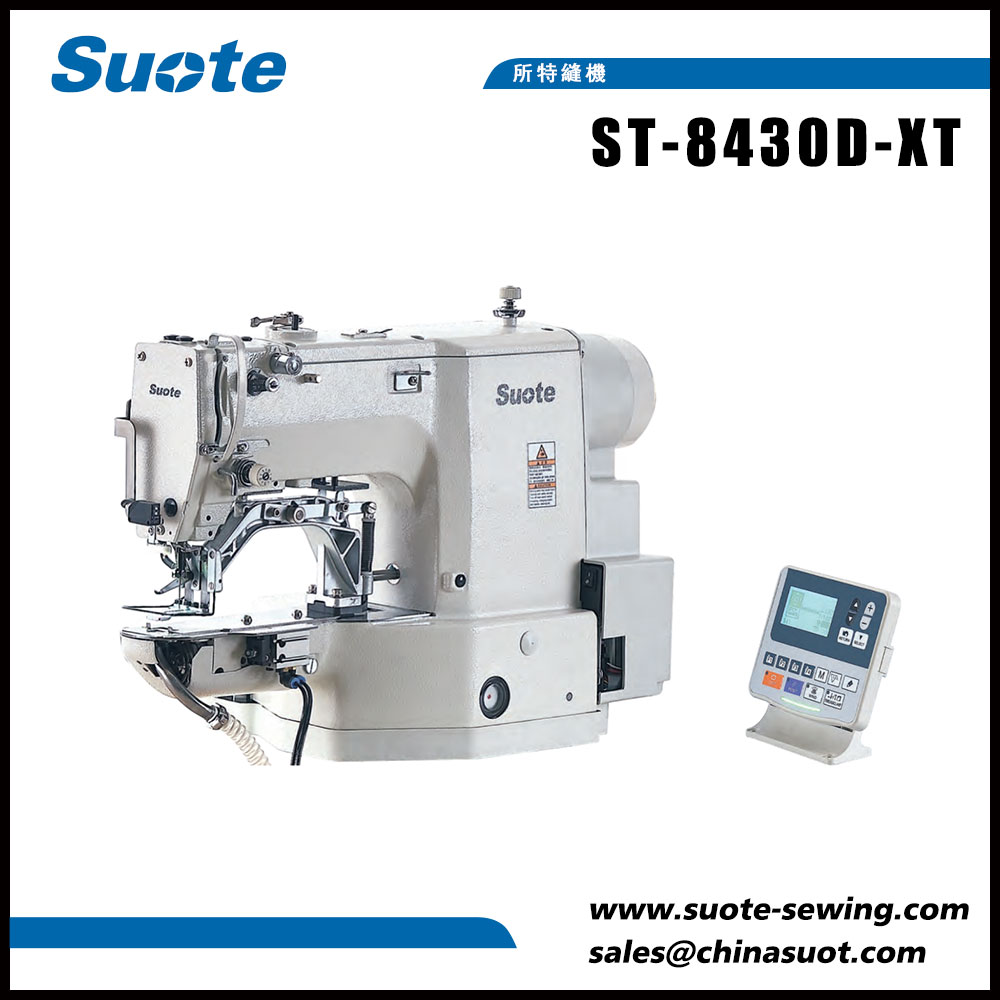

Electronic Thread Trimmer Bar Tacker

Model

ST-8430D-XT

Name

Electronic Thread Trimmer Bar Tacker

Stitch formation

Single needle lockstitch

Max sewing speed

3200sti/min

Sewing area(X-Y)

Max 40*30mm

Feed mechanism

Y-θ intermittent feed mechanism(pulse-motor driven mechanism)

Stitch length

0.05-12.7mm

Max number of stitches

210000stitches(including 200000stitches which can be mechanism)

Work clamp lifter

Pulse motor drive system

Work clamp height/button clamp height

17mm Max

Rotary hook

Shuttle hook

Thread wiper drive

Standard equipment

Thread trimmer drive

Standard equipment

Data storage method

Flash memory(any sewing pattern can be added using CF card)

Number of user program

50

Number of cycle program

50

Number of stored data

89 sewing patterns are set already

Motor

Up to 200 patterns can be added,total number of stitches of stored data which can be added is within 200000

Power source

Single phase 100V/220V、Three phase 200V/220V/380V/400V/400VA
