Electronic Pattern Sewing Machine

Suote is a professional manufacturer of Electronic Pattern Sewing Machine. Our professional expertise in manufacturing Electronic Pattern Sewing Machine has been honed over the past 20+ years.Electronic pattern sewing machine ST-8342G (300*200mm). Introduction: ·Sewing data is sewn faithfully and attractively. ·High maximum sewing speed ·Economical operation with low power consumption ·Work clamp lift amount can be adjusted easily from the operation panel ·Easy-to-use programmer（optional product） ·Sewing area: 300*200mm

Model:ST-8342G (300*200mm)

Send Inquiry PDF DownLoad

Product Description

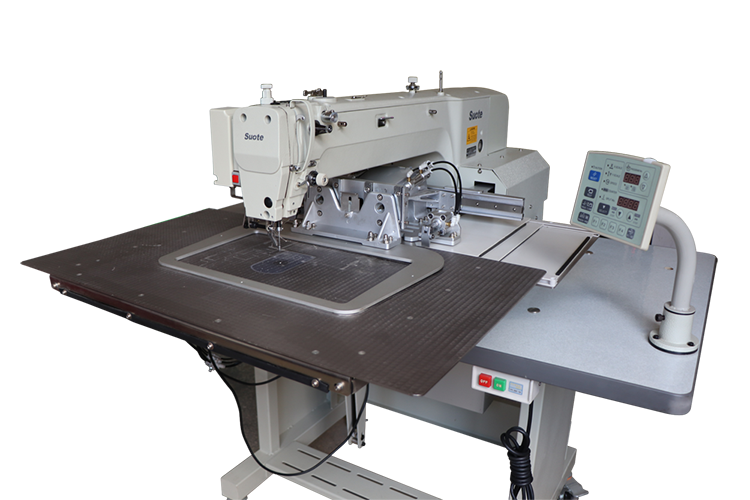

Electronic pattern sewing machine ST-8342G (300*200mm)

Introduction

·Sewing data is sewn faithfully and attractively.

·High maximum sewing speed

·Economical operation with low power consumption

·Work clamp lift amount can be adjusted easily from the operation panel

·Easy-to-use programmer（optional product）

·Sewing area: 300*200mm

Features of this Electronic Pattern Sewing Machine

Direct Drive

Typical Application of this Electronic Pattern Sewing Machine


Jeans	Bag	Sports shoes	Car articles

Specification of this Electronic Pattern Sewing Machine

	ST-8311G	ST-8326G	ST-8342G
Sewing machine	Lock stitch pattern tacking machines
Stitch form	Single needle lock stitch
Max.sewing speed	2,700 sti/min
Sewing area(X*Y)	Max.130*100mm	Max.200*100mm	Max.300*200mm
Feed mechanism	Intermittent feed (pulse motor drive)
Stitch length	0.05 - 12.7mm
Max.number of stitches	20,000 stitches per pattern
Work clamp drive	Pulse motor drive/ Pneumatic drive	Pulse motor drive	Pulse motor drive
Work clamp lift amount	-0□S : Max . 25mm - 0□A : Max . 30mm	Max.30mm	Max.30mm
2-step work clamp	-0□S:Unit work clamp -0□A:Separate work clamp	Separate work clamp	Unit work clamp
Height of stepping presser foot	22mm	19.5mm	22mm
Stepping presser foot stroke	2 - 4.5mm,4.5 - 10mm or 0 (Factory setting :3 mm)
Hook	Double-capacity shuttle hook (Standard capacity hook: Option)
Thread wiper	Standard equipment
Thread trimmer	Standardequipment
Data storage media	Flash memory (Sewing patterns can be added using CF card)
Motor	AC servo motor 550W
Weight	Machine head: 88 kg ,Operation panel: approx 0.6 kg, Control box:14.2-16.2kg (Depending on destination)
Power supply	Single phase 100V/220V, 3-phase 200V/220V/380V/400V 400VA
Air pressure/consumption	0.5 Mpa 1.7L / min

Option Device of this Electronic Pattern Sewing Machine:


Flip Flop for Label	Custom-made	LCD Programmer

Delivery and Service of this Electronic Pattern Sewing Machine:

·The machines have enough stock and can delivery within 7days.

·One year guarntee in mechanism parts except the quick-wear parts, three years guarntee in electronic parts.
