Electronic Logo Stitch Pattern Sewing Machine

Suote with specialized technology, high-quality service system of perfection and production experience for many years, develops the special machinery. The following is about Electronic Logo Stitch Pattern Sewing Machine related, I hope to help you better understand Electronic Logo Stitch Pattern Sewing Machine.Suote is a professional manufacturer of Electronic Logo Stitch Pattern Sewing Machine. Our professional expertise in manufacturing Electronic Logo Stitch Pattern Sewing Machine has been honed over the past 20+ years.

Model:ST-8326G-CH

Send Inquiry PDF DownLoad

Product Description

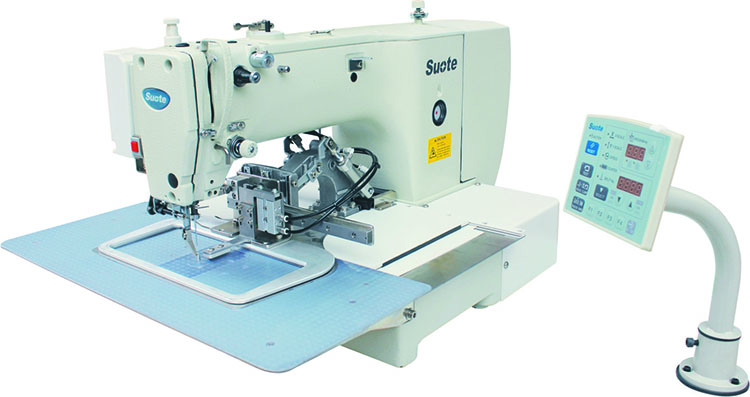

Electronic Logo stitch pattern sewing machine ST-8326G-CH

Electronic Logo Stitch Pattern Sewing Machine

Pattern sewing machine with sliding presser foot is widely usted garments label sewing, bags pattern sewing.The presser foot can make sliding movement during sewing.The sliding device sewing,which reduces several intermedium traditional procedures.The sewing time is saved and enhance the efficiency can hold the material tightly to avoid material moving during.

Introduction of Electronic Logo Stitch Pattern Sewing Machine

·Sewing data is sewn faithfully and attractively.

·High maximum sewing speed

·Economical operation with low power consumption

·Work clamp lift amount can be adjusted easily from the operation panel

·Easy-to-use programmer（optional product）

·Sewing area: 220*100mm

Features of Electronic Logo Stitch Pattern Sewing Machine

Direct Drive

Typical Application of Electronic Logo Stitch Pattern Sewing Machine


Jeans	Bag	Sports shoes	Car articles

Specification of Electronic Logo Stitch Pattern Sewing Machine

	ST-8311G-CH	ST-8326G-CH	ST-811G-FZ	ST-8326G-FZ	ST-8342G-FZ
Sewing machine	Lock stitch pattern tacking machines
Stitch form	Single needle lock stitch
Max.sewing speed	2,700 sti/min
Sewing area(X*Y)	Max.130*100mm	Max.200*100mm	Max.130*100mm	Max.200*100mm	Max.300*200mm
Feed mechanism	Intermittent feed (pulse motor drive)
Stitch length	0.05 - 12.7mm
Max.number of stitches	20,000 stitches per pattern
Work clamp drive	Pulse motor drive/ Pneumatic drive	Pulse motor drive	Pulse motor drive/ Pneumatic drive	Pulse motor drive	Pulse motor drive
Work clamp lift amount	-0□S:Max .25mm - 0□A:Max .30mm	Max.30mm	-0□S:Max .25mm - 0□A:Max .30mm	Max.30mm	Max.30mm
2-step work clamp	-0□S:Unit work clamp -0□A:Separate work clamp	Separate work clamp	-0□S:Unit work clamp -0□A:Separate work clamp	Separate work clamp	Unit work clamp
Height of stepping presser foot	22mm	19.5mm	22mm	19.5mm	22mm
Stepping presser foot stroke	2 - 4.5mm,4.5 - 10mm or 0 (Factory setting :3 mm)
Hook	Double-capacity shuttle hook (Standard capacity hook: Option)
Thread wiper	Standard equipment
Thread trimmer	Standardequipment
Data storage media	Flash memory (Sewing patterns can be added using CF card),or USD through LCD Programmer
Motor	AC servo motor 550W
Power supply	Single phase 100V/220V, 3-phase 200V/220V/380V/400V 400VA
Air pressure/ consumption	0.5 Mpa 1.7L / min

Delivery and Service of Electronic Logo Stitch Pattern Sewing Machine:

·The machines have enough stock and can delivery within 7days.

·One year guarntee in mechanism parts except the quick-wear parts, three years guarntee in electronic parts.
