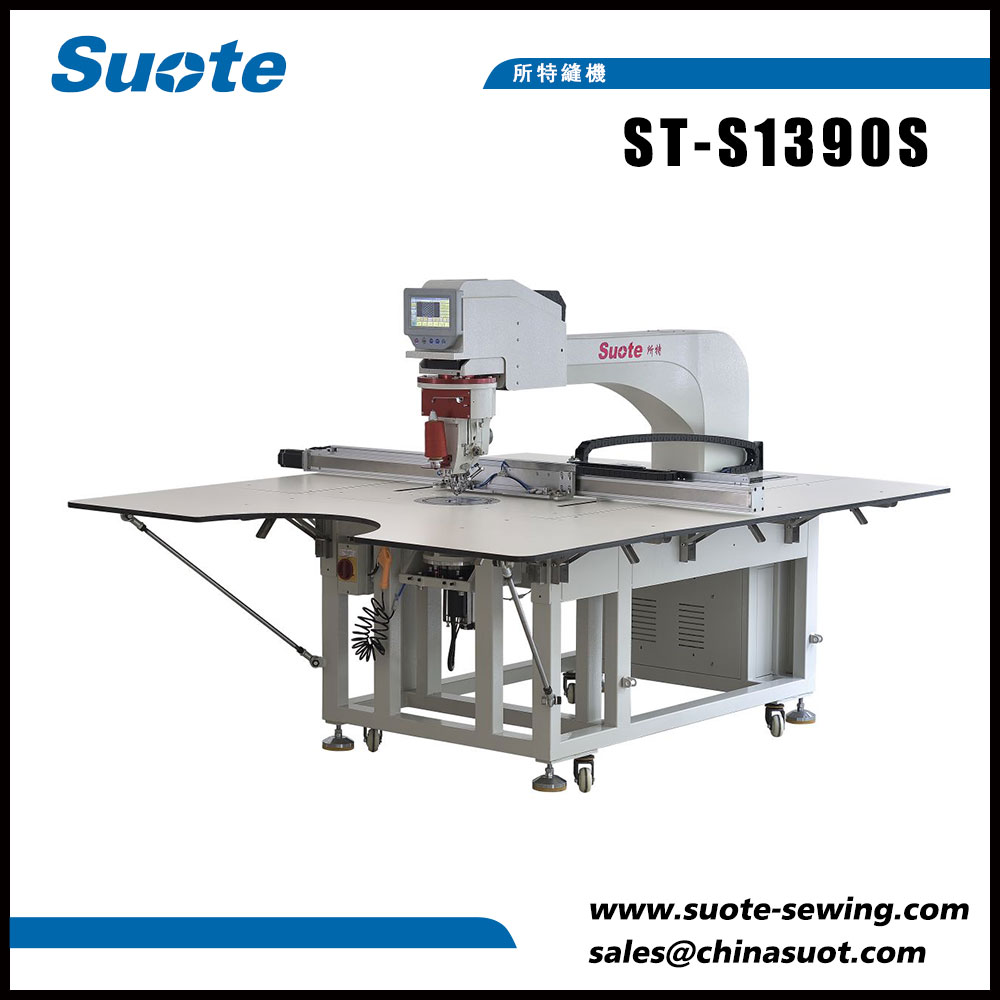

Machine Head Lifting Rotating Intelligent Template Machine
Suote is a professional manufacturer and supplier of machine head lifting rotating intelligent template machine in China.We have been specialized in template machine for 20+ years.Suote with professional technology, high-quality service system of perfection and production experience for many years, develops the special machinery.Our products are used for kinds of heavy material products,such as car seats,bags,sofas and so on.The following is about detailed product information and specifications to help you better understand the machine to fit your needs.
Model:ST-S1390S
Send Inquiry PDF DownLoad
Product Description
Product introduction of machine head lifting rotating intelligent template machine
Machine head lifting rotating intelligent template machine is the main product of our company.Machine head lifting rotating intelligent template machine has special way of the thread trimming by using motor horizontal rotation,which makes heavy material trimming much more stable.The rotary hook is vertical design,specially for heavy material,and the stitch is much perfect and stable.It uses 3 times rotary hook,increasing stitch length.Machine head can lift and the max height is 50 mm，enhancing product adaptability.The machine head rotation installs the reducer and stops the needle more stable.
Product specifications of machine head lifting rotating intelligent template machine
|
Model |
ST-S1390S |
|
Name |
Machine Head Lifting Rotating Intelligent Template Machine |
|
Sewing Area |
1300mm×900mm |
|
360°Rotating |
Servo Motor 600W |
|
Stitch |
Intelligent template machine(3 times Rotary Hook) |
|
Single needle lock stitch |
|
|
Max.Sewing Speed |
2500sti/min |
|
Head Lift Height |
50mm |
|
Feed System |
X screw servo motor 600W |
|
Y screw servo motor 750W |
|
|
Stitch Length |
0.05-50mm |
|
Max Stitches |
20000stitches/program |
|
Presser Foot Lift |
22mm |
|
Presser Foot Stroke |
0 or 2-10mm(factory setting 5mm) |
|
Ratary Hook |
Rotary Hook |
|
Thread Trimming Device |
Motor horizontal rotation |
|
Data Storage Media |
USB |
|
Main Motor |
AC Servo Motor |
|
Pressure |
0.4-0.6Mpa 1.7L/min |
Product feature and application of machine head lifting rotating intelligent template machine
(1)Independent motor is used for upper and lower machine head,no belt drive,lower noise,better stability,more accurate synchronization up and down.
(2)The machine head rotation installs the reducer and stops the needle more stable.
(3)Machine head lifting rotating intelligent template machine has double screw.
(4) It is use for car sets,bags,sofas and other kinds of heavy material products.
Production detail of machine head lifting rotating intelligent template machine
