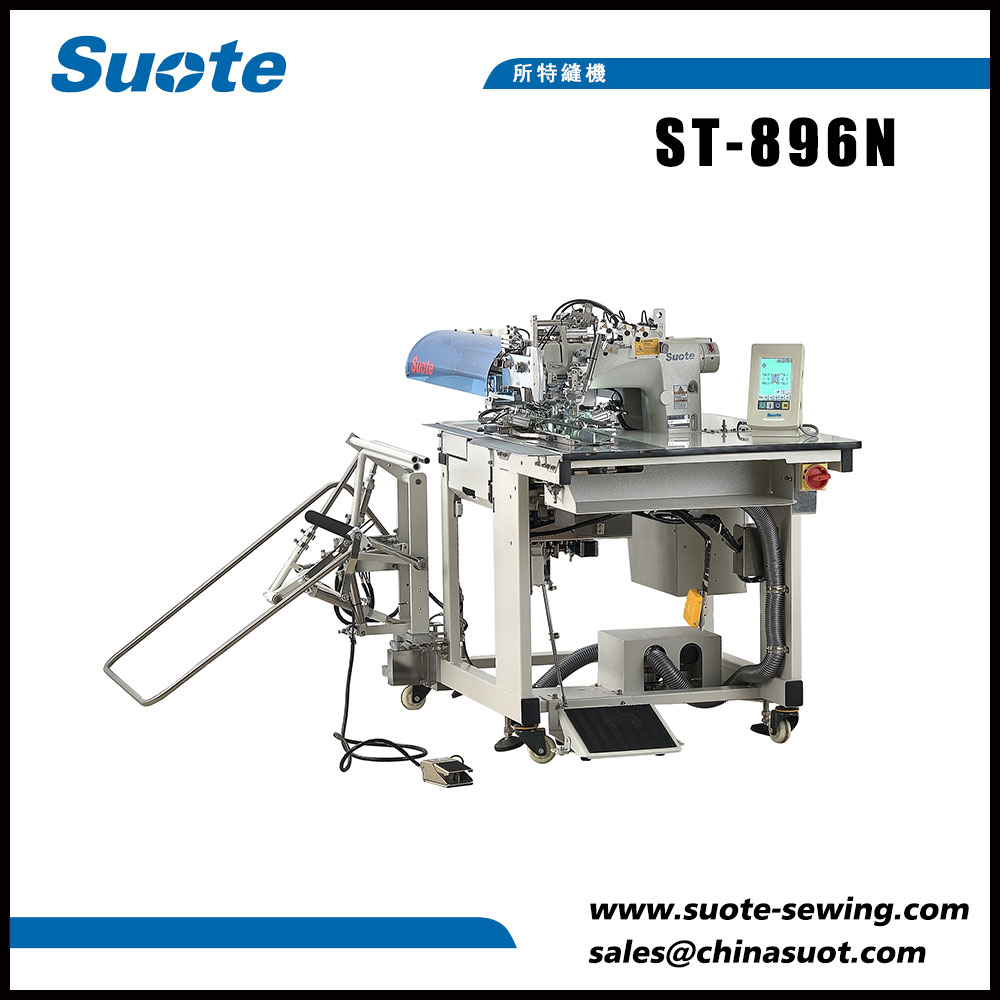

Automatic Pocket Welting Double Needle Lockstitch Machine

Automatic pocket welting double needle lockstitch machinee with organized split needle bar, For Slanted Pockets With Flaps

The machine supports the sewing of straight pockets (with flaps) on suits, jackets and pants.

Double-/single-welt sewing can be changed over by the simple touch of a key on the operation panel.

Increased adjustable range of sewing lengths (min. 18mm to max.220mm)

Increased productivity

In addition to the high-speed machine head with a maximum speed of 3,000 sti/min, faster movement (jump and forwarding)of the clamp foot achieves a shorter machine time.

Newly developed stacker which is able to handle small articles

With the clamp bar stacker, the machine is able to handle materials with a shortest distance of 250 mm from its edge to the pocket. A stacking sensor is also provided as standard to prevent stacking errors.

Suction device (for sewing tables with separated right and left parts)

The device improves the ease of the material placement by sucking the garment body.

Highly-visible and easy-to-use large color LCD touch-panel

The graphic display and touch panel on the large color LCD help dramatically increase ease of use. Basic operations are carried out with the graphic screen and pictogram buttons. Guidance messages are given in your selected language.

Now the USB-ready main body of the sewing machine uses many different kinds of media :

The memory storage capability of the main body of the sewing machine has been dramatically enhanced. Now the USB-ready main body of the sewing machine uses many different kinds of media. In addition to the Compact Flash card, the main body of the sewing machine is provided as standard with a USB connector. Now, data can be input/output to/from various kinds of media (SD (Secure Digital Card), CF (Compact Flash), SM (Smart Media) etc.)by means of a USB thumb device and a card reader.

Specifications
